FUJITOOL Precision Gauges

Used for checking internal and external radii of tool patterns and other machining jobs.
Individual gauges can be used separately. Each gauge is marked with
Its radius and 5 different gauge surfaces for both convex and concave radii. High precision is guaranteed

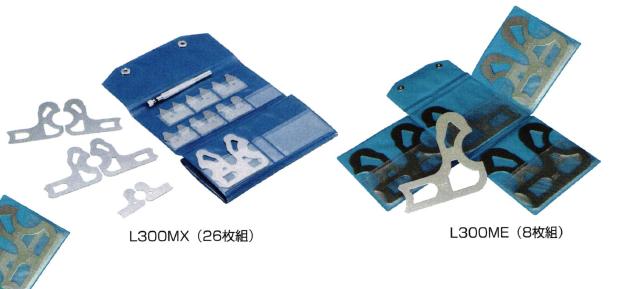

RADIUS GAUGES L300 Type

feature

  • Material
    Stainless Steel (0.6t)
  • Accuracy
    0.2R～ 25.0R(± 0.03mm)
    25.5R～ 50.0R(± 0.05mm)

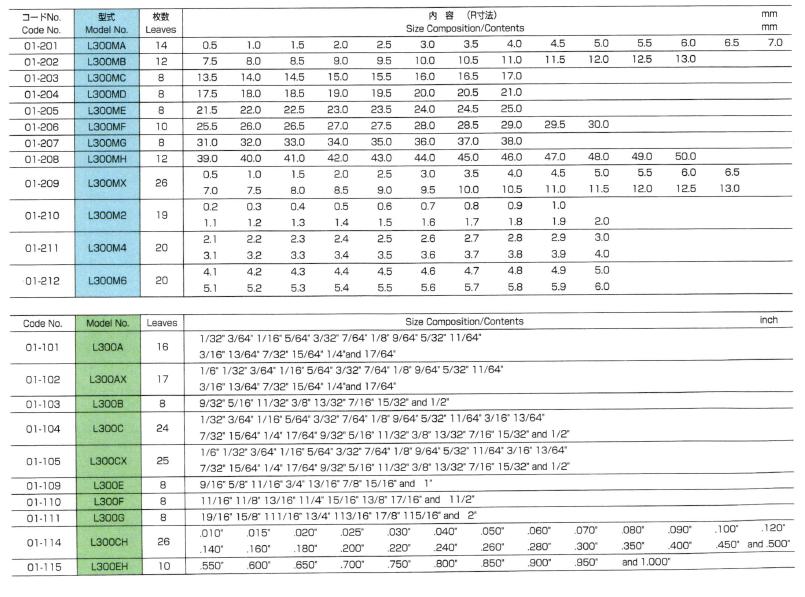

spec

For a better look click on the image above.
