TECLOCK Indicators/Gauge Dial Gauge

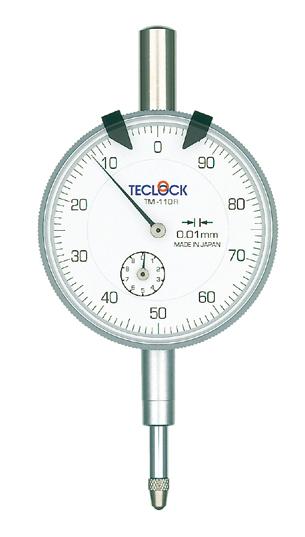

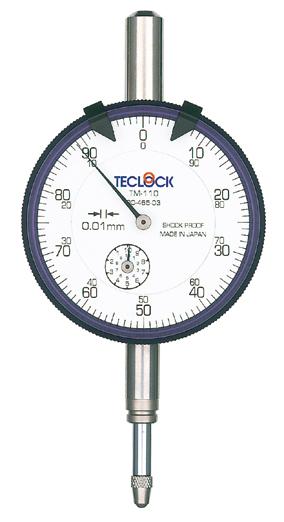

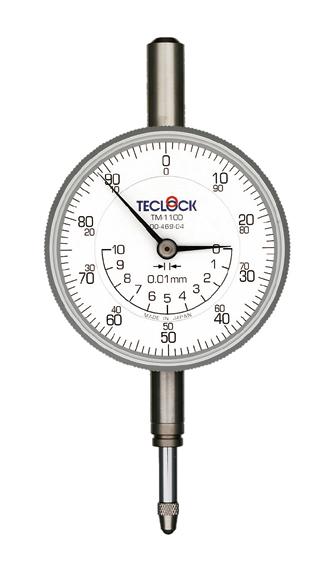

Dial Indicators are surely utilized at manufacturing sites where dimensional high accuracy is needed to be confirmed. The graduation (1- graduation ) depends on usage and Teclock offers 6 kinds of graduations, namely 0.0005mm, 0.001mm, 0.005mm, 0.01mm, 0.05mm and 0.1mm. The strokes are available from 0.08mm (the shortest) up to 150mm. Dial Indicators are normally not used independent but its stem or lug back is fixed to a jig and holds work piece with the measuring stand and contact point, and displacement volume is read with short hand and pointer. The dial indicators are applied for direct measurement to measure actual dimension and comparative measurement for measuring displacement volume from a certain standard dimension.

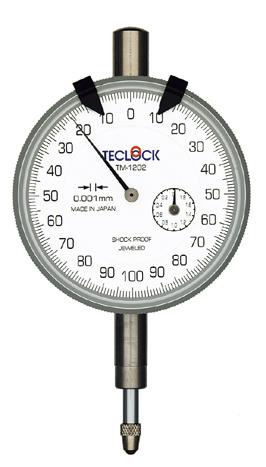

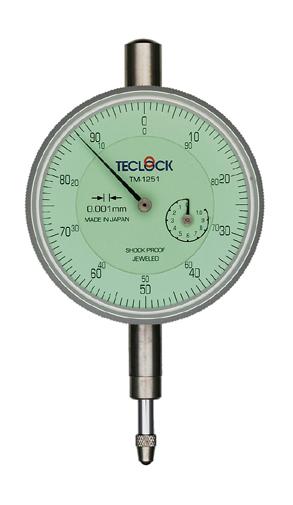

Dial Indicators

feature

  • Standard type dial indicators of graduation 0.001mm and bezel diameter 56mm.
  • Durability is pursued by protecting mechanical parts like gears with shock absorbing mechanism (Teclock unique shock proof mechanism).
  • Jeweled bearing is applied for improving durability.
  • Stable repeatability accuracy is realized with lever enlargement mechanism built–in.
  • Tolerance hand is provided as standard accessory for all models for positive tolerance setting.
  • Lifting lever (Option) can be mounted . (Refer to page 25)
  • Bezel clamp (Option) can be mounted (except for TM-1201PW).
  • Measuring ability can be changed .
  • In case that flat back is required, add suffix "f" to the end of model number (example =TM-1201f).

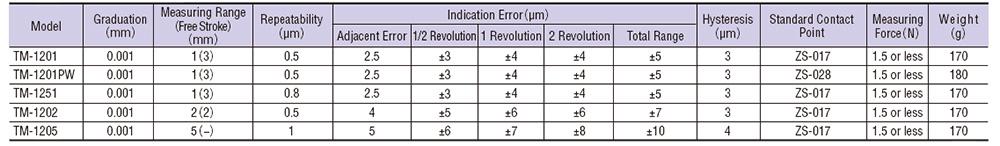

spec
