EISEN Plug, Thread Plug Gauges
One-way Thread Gauge 2 -> 1
This gauge makes operating efficiency improve from the double measurement to just once!
The one-way thread gauge make operational efficiency improve with just one measurement as opposed to an existing plug gauge must take a double measurement (Go / Not-Go).
A passing grade is that the GO-side thread plug gauge section can be easily inserted in a tapped hole and it stops up to the end face of the gauge stopper.
Can prevent an inspection error, because the go side gauge is guide.
This gauge makes operating efficiency improve from the double measurement to just once!
The one-way thread gauge make operational efficiency improve with just one measurement as opposed to an existing plug gauge must take a double measurement (Go / Not-Go).
A passing grade is that the GO-side thread plug gauge section can be easily inserted in a tapped hole and it stops up to the end face of the gauge stopper.
Can prevent an inspection error, because the go side gauge is guide.

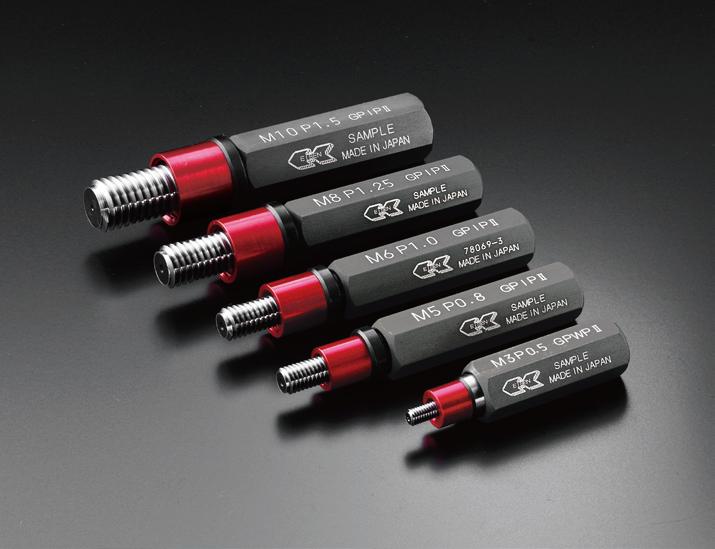

One-way Thread Gauge SPO Series
feature
- A removable hexagonal aluminum handle is attached.
- The handle section uses a left-thread configuration to prevent over tightening.
- The gauge material is Gauge steel (SKS3, HRC58 or harder), and the gauge has exceptional wear resintance.
- An inspection report for the thread gauge is included with to provide confidence and assurance for users!

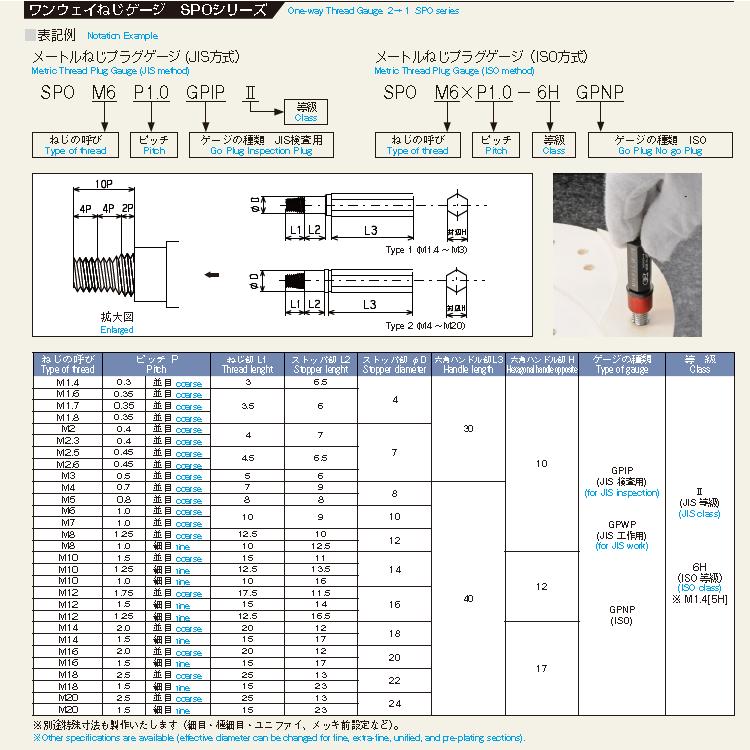

spec
For a better look click on the image above.
